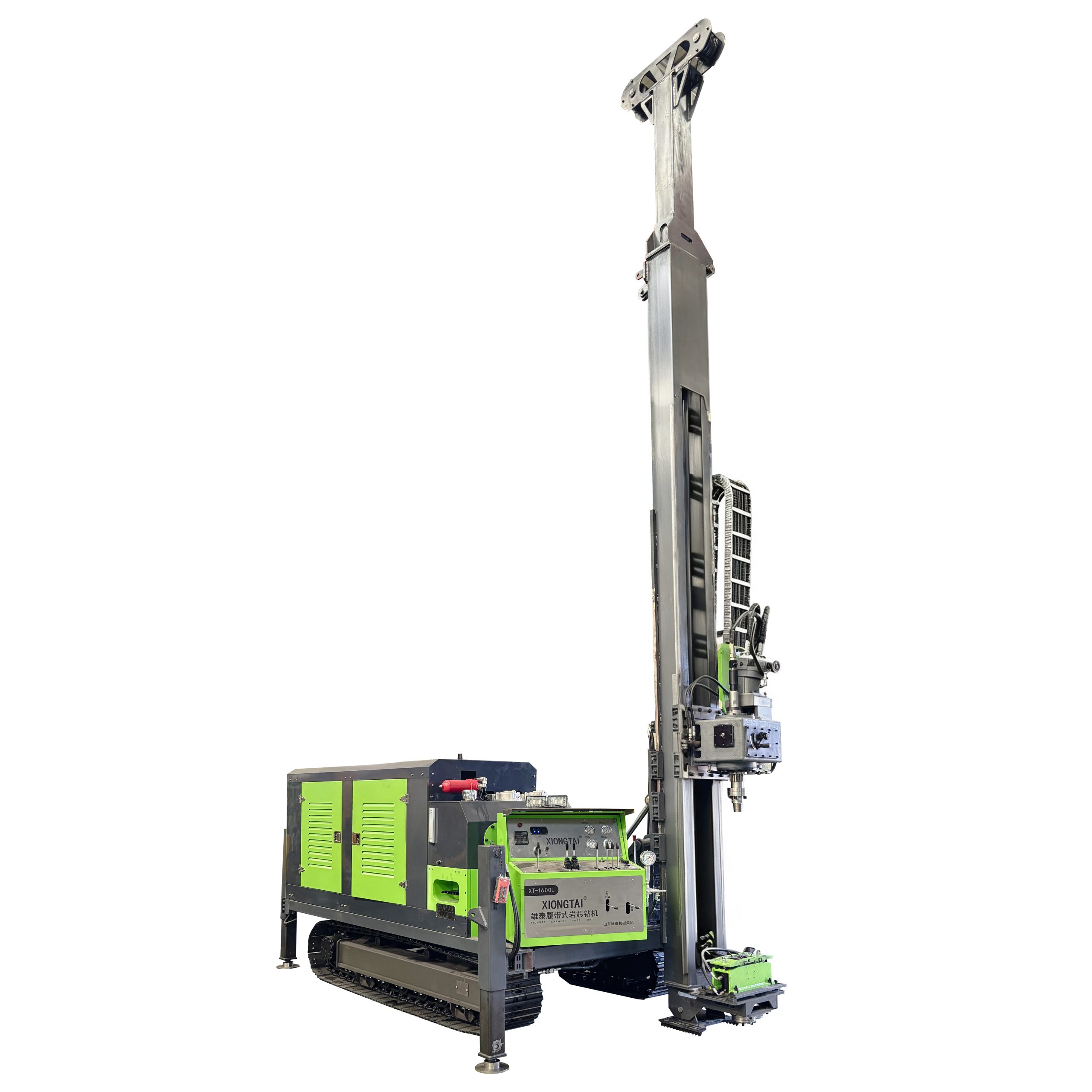

XT‑1600 Full‑hydraulic Core‑taking Drilling Rig
Product Features:
● This drill rig is equipped with a Weichai 180kW six-cylinder diesel engine, featuring abundant power, stable operation and high reliability. Its core structure integrates power, hydraulic and drilling systems into an all-in-one unit, and full-hydraulic drive enables core drilling construction. Remote-controlled crawler traveling allows rapid site relocation and transportation, applicable to various fields such as geological exploration and engineering geological investigation.
XT-1500L Specifications：
| Model | XT-1500L |
| Bore Diameter | PQ/HTW/NTW/BTW/HQ/NQ/BQ |
| Drilling Depth | 1500M |
| Cooling Type | Air-cooled |
| Rated Power | 180KW |
| Motor Rotation Speed | 1300MAX |
| Torque | 4000N.M |
| Spindle Speed | 0-1300RPM |
| Drilling Angle Range | 0-90° |
| Lifting Capacity | 28T |
| Rope Capacity of Winch | 1500M |
| Hydraulic Gripper | Self-weight Type |
| Travel Type | Steel Crawler (Manual & Remote Control) |
| Travel Speed | Two-speed Shift |
| Total Weight | 7800KG |
| Transport Dimensions(L×W×H) | 6350*1850*2300MM |
